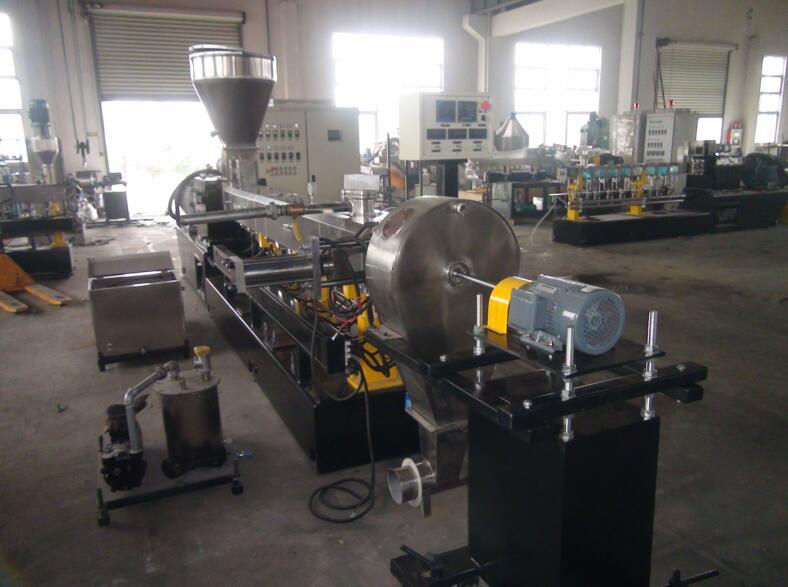

WPC extruder wood plastic pelletizing machine twin screw extruder
Nanjing Yongjie started to make corn starch, pla pellets,
biodegradable plastic pellets since 2001,our twin screw extruders
are widely used for enforcing modification, degradable master
batch, anti-flame master batch etc also.
Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP,
Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
WPC granules for outdoor floor,pavilion, wooden bench, armrest,
trash cans, etc
Scope of supply:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | Feeding system | set | 1 | 2.2kw |
| 1.2 | SJ-95Twin screw extruder | set | 1 | 280kw, 40:1 |
| 1.3 | Water cycling system | set | 1 | 1.5kw |
| 2 | Electric cabinet | set | 1 | |
| 3 | Air-cooling auxiliary system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Face cutter | set | 1 | 2.2kw |
| 3.3 | First air conveying system | set | 1 | 11kw |
| 3.4 | First air conveying system | set | 1 | 5.5kw |
| 3.5 | Product silo | set | 1 | 5.5kw |
| 4 | Documents | set | 1 | |
Free spare parts:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Screw elements | set | ~500mm | |
| 2 | Output and input shaft oil seals | piece | 3 | |
| 3 | Venting room seal ring | piece | 1 | |
| 4 | Asbestos gloves | pairs | 2 | |
| 5 | Allen key (inner) | set | 1 | 5 pieces |
| 6 | Allen key (outer) | set | 1 | 3 pieces |
| 7 | Flat, Cross Screw driver | piece | 1 each | 2 pieces |
| 8 | Copper bar ∮32*200 | piece | 1 | |
| 9 | blade | piece | 30 | |
Main model parameter
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001,
covers an area of 20,000 square meters on our own land, with
monthly output of machine 20sets. Our factory is certificated to
CE, ISO9001:2008.The company concentrates on research, development
and production of “high level, accurate, highly sophisticated
series product parallel co-rotating “cordwood” twin screw extruder,
single screw extruder, two stage extruders and automatic plastic
pelletizing machines. We have provided customers first-class
products with “strong torque, high production, energy conservation
and environmental protection products. The special designed screw
structure has realized successfully for “one step shaping” on many
kinds of products, and is widely used in aluminum composite plate,
XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to
ISO 9001:2008 and CE.
