White Filler Masterbatch Machine Twin Screw Extruder Plastic
Pellets Machine
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and
carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material,
crosslinking material, cable coating material, thermal contraction
pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU
thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details
Screw diameter:71mm
Screw material:W6Mo5Cr4V2 high speed tool steel
Barrel diameter:72mm
Barrel material:W6Mo5Cr4V2 high speed tool steel
L/D:48/52:1
Output:2000-2500kg/h
Formula:PE/PP+80-85% caco3+PE wax+additives
Main technical data of various model of twin screw extruder
pelletizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | | |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |

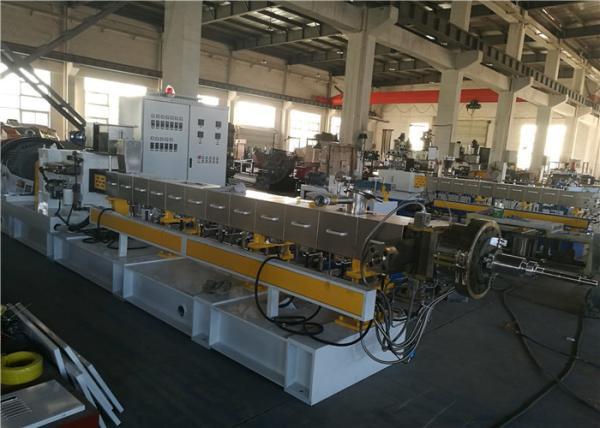

Photo of SJSL75D filler masterbatch machine
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.The company concentrates on
research, development and production of “high level, accurate,
highly sophisticated series product parallel co-rotating “cordwood”
twin screw extruder, single screw extruder, two stage extruders and
automatic plastic pelletizing machines. We have provided customers
first-class products with “strong torque, high production, energy
conservation and environmental protection products. The special
designed screw structure has realized successfully for “one step
shaping” on many kinds of products, and is widely used in aluminum
composite plate, XPS foaming plate, WP plate, PP, PE sheet
industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
