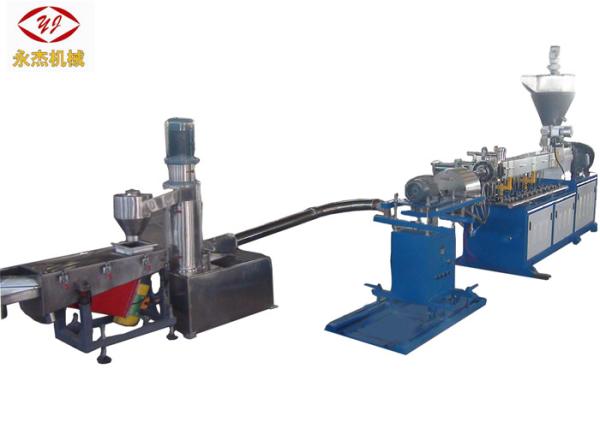

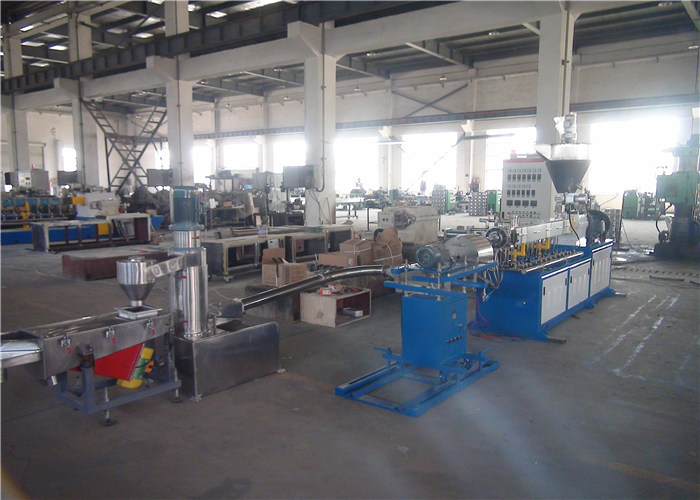

Water Ring Pelletizer Filler Masterbatch Manufacturing Machine Twin
Screw Extruder
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and
carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material,
crosslinking material, cable coating material, thermal contraction
pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU
thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Pre-sales service
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines
for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in
installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new
product.
♦5. Providing free maintenance for a year.
Quick details of sjsl36 water ring pelletizer
Screw diameter:35.6mm
Screw material:W6Mo5Cr4V2
Barrel diameter:36mm
Barrel material:W6Mo5Cr4V2
Motor power:15kw
Motor brand: SIEMENS
L/D:44:1
Output:30-80kg/h
Scope of supply of sjsl36 water ring pelletizer
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | High speed mixer | set | 1 | 50L |
| 1.2 | Main feeding system | set | 1 | 0.75KW |
| 1.3 | SJ36 twin screw extruder | set | 1 | 18.5KW, 44:1 |
| 1.4 | Vacuum venting system | set | 1 | 0.75KW |
| 1.5 | Water recycling system | set | 1 | 0.55KW |
| 1.6 | Hydraulic screen changer | set | 1 | 0.75KW |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water-ring assembly system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Face cutter | set | 1 | 1.5KW |
| 3.3 | Water-ring cutting cover | set | 1 | |
| 3.4 | Centrifugal dehydrator | set | 1 | 2.2KW, 3KW |
| 3.5 | Production container | set | 1 | 3KW |
| 4 | Documents | set | 1 | |
Main Technical Details of Plastic Pelletizing Machine Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
