30-50kg/H PP + TIO2 Twin Screw Extrusion Machine In The Water Cutting Type

Ask Lasest Price
Brand Name :	Yongjie
Model Number :	SJSL36
Certification :	CE
Price :	USD48000-110,000/set
Payment Terms :	L/C, T/T
Supply Ability :	200sets per year
Delivery Time :	35-50 days

Add to Cart

Product Details
Company Profile

30-50kg/H PP + TIO2 Twin Screw Extrusion Machine In The Water Cutting Type

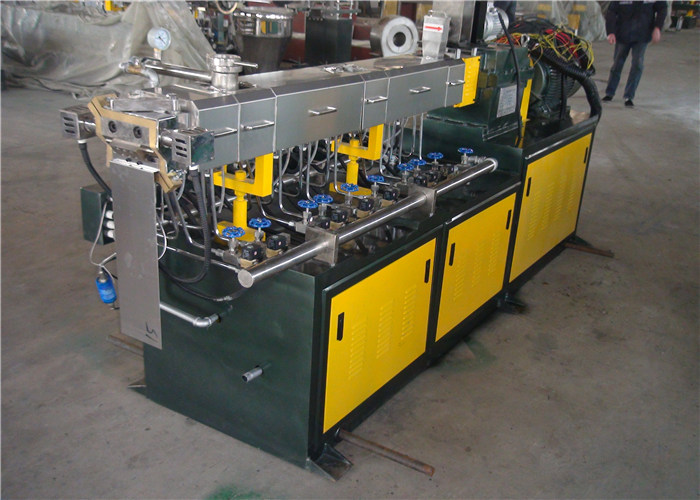

SJSL36 30-50kg/h PP+TIO2 Twin Screw Extruder Machine Plastic Pelletizing Machine

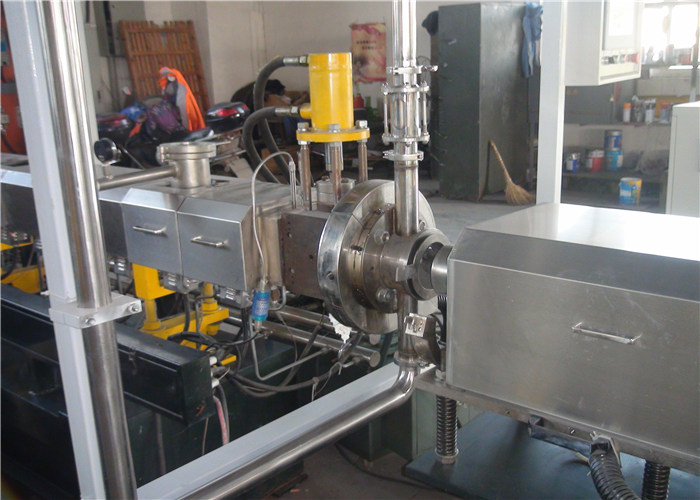

Nanjing Yongjie underwater plastic pellet machine is the special and innovative technique for the production of
hgih-quality plastics pellets, which have low viscosity and high elasticity, or have special shape, such as micro-particle.
Typical Application:1. Polyolefine:LLDPE, LDPE, HDPE, PP, EPDM...2. Styrolpolymere:PS, ABS... 3. Acrylharze:PMMA...4. Polyacetale:POM...5. Polycarbonate:PC,PET,PBT, PE...
6. Polyamide:PA6,PA6.6,PA11,PA12...7. Thermoplastics Elastomer:TPE,TPV,TPR,TPEE...8. Hot melt adhesives: TPU, EVA, PA, PP

Quick details
Power:18.5kw
Screw material:W6Mo5Cr4V2
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
L/D:44:1
Output:30-50kg/h according to different material, formula and technology of process etc.
Revolutions: 0-600rpm；
Reduction ratio: i = 2.5:1

Scope of supply

No.	Contents	Unit	Quantity	Marks
1	Twin screw extrusion system	set	1
1.1	Feeding system	set	1	0.75kw
1.2	SJ-36 Twin screw extruder	set	1	18.5kw, 44:1
1.3	Vacuum venting system	set	1	0.75kw
1.4	Water cycling system	set	1	0.55kw
1.5	Manual screen changer	set	1	0.75kw
2	Electric cabinet	set	1
3	Underwater pelletizing auxiliary machine system	set	1
3.1	Dump valve system	set	1
3.2	Cutting head	set	1
3.3	Cutting knife system	set	1
3.4	Pneumatic valve	set	1
3.5	Dehydrator	set	1
3.6	Electric cabinet	set	1
3.7	vibrator	set	1
3.8	One stage blowing transmitting system	set	1
4	Documents	set	1

Business Clause
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

Main Techincal Parameter of Various Models

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL20	A/B	22	21.7	32-44	500/600	4/5.5kw	30/30
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
