LLDPE, LDPE, HDPE, TPR Twin Screw Water Ring Pelletizer Plastic
Pellet Machine
Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and
carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material,
crosslinking material, cable coating material, thermal contraction
pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU
thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details
Power:75kw
Screw material:W6Mo5Cr4V2
Barrel material: 45＃forged steel with the abrasion-resistant alloy
101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
L/D:44:1
Output:500-600kg/h according to different material, formula and
technology of process etc.
Revolutions: 0-500rpm；
Reduction ratio: i = 3:1
Business Clause
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after
testing and qualifying machine at seller's manufacturer, L/C
payment are negotiable
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture
brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.

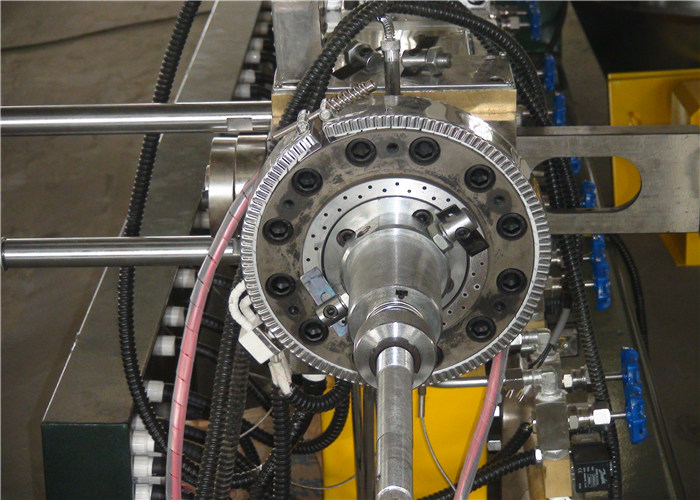

Photo of LLDPE, LDPE, HDPE, TPR Twin Screw Water Ring Pelletizer
Plastic Pellet Machine
Main technical data of various model of twin screw extruder
pelletizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.The company concentrates on
research, development and production of “high level, accurate,
highly sophisticated series product parallel co-rotating “cordwood”
twin screw extruder, single screw extruder, two stage extruders and
automatic plastic pelletizing machines. We have provided customers
first-class products with “strong torque, high production, energy
conservation and environmental protection products. The special
designed screw structure has realized successfully for “one step
shaping” on many kinds of products, and is widely used in aluminum
composite plate, XPS foaming plate, WP plate, PP, PE sheet
industry, etc.
