2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring
Pelletizing Machine 800rpm Extruder Twin Screw
Quick details
Power:250/280/315kw option according to required output
Motor: AC motor, Siemens Beide
Screw diameter:71mm
Barrel diameter: 71.8mm
L/D:48/52
Output:2000-2500kg/h according to different material, formula and
technology of process etc.
Cutting way: our water ring & air cooling plastic pelletizing
machine are widely used for PE PP filler masterbatch
Warranty:one year
Lead time:45 days after deposit
SJSL75D Water ring pelletizer system
1 Die head
Made of 38CrMoAlA, which has been treated by the azotizing on the surface, HV=950~1100.
2 Cutter with cover
1).Electromagnetic frequency control speed;
2). Motor power: 2.2kw.
3 Centrifugal dehydrator
1). Stainless steel main body, 15kw motor power.
4 Vibrating sieve
1).One sets of stainless steel vibrator sieve with two motors
0.375kw/set, 0.75kw in total, 3M long.
5 Product silo
1).It consists of stainless steel cyclone separator with brackets, 7.5KW fan, T-joint and sending pipes
(2).Silo capacity:1.5tons

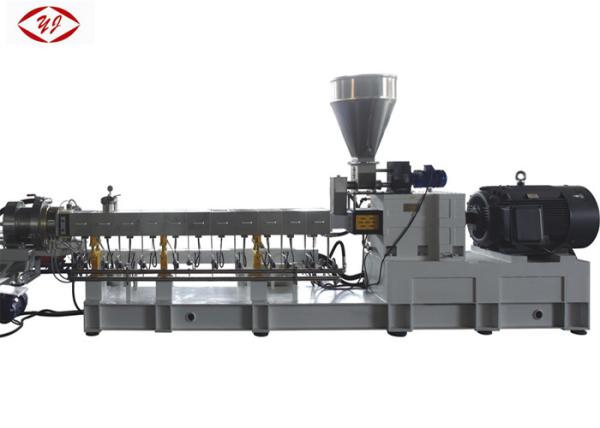

Photo of 2500kg/h PE/PP with Caco3 Master Batch Mamchine Water Ring
Pelletizing Machine 800rpm Extruder Twin Screw (more models are available)
Main technical data of various model of extruder twin screw pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of
“high level, accurate, highly sophisticated series product parallel
co-rotating “cordwood” twin screw extruder, single screw extruder,
two stage extruders and automatic plastic pelletizing machines. We
have provided customers first-class products with “strong torque,
high production, energy conservation and environmental protection
products. The special designed screw structure has realized
successfully for “one step shaping” on many kinds of products, and
is widely used in aluminum composite plate, XPS foaming plate, WP
plate, PP, PE sheet industry, etc.

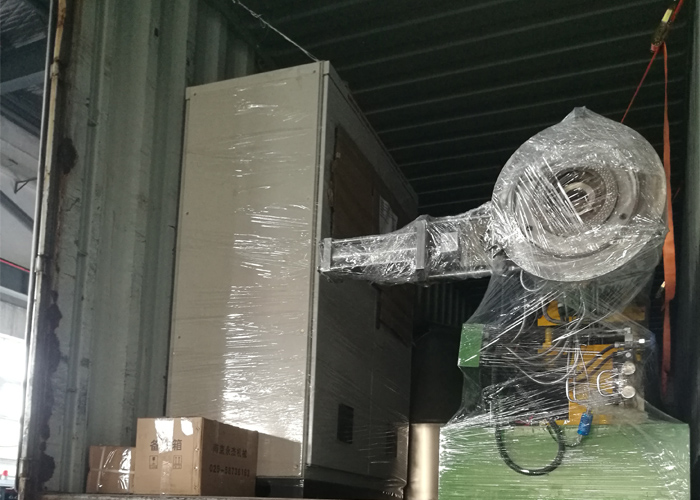

Package of our plastic pellet machine ( sea worthy film or wooden
box according to requirements)
