50-100kg/h WPC Extruder Machine Air Cooling Twin Screw Extruder For
Wood Plastic Composite
Quick details
Power:55kw option according to required output
Screw diameter:50.5mm
Screw material: W6Mo5Cr4V2 (6542＃) high speed tool steel
Barrel diameter:51mm
Barrel material:45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside
L/D:40
Output:50-100kg/h according to different material, formula and technology of
process etc.
Cutting way: air cooling die face plastic pellet machine is used
for wpc plastic pellet
Warranty:one year
Lead time:45 days after deposit
| No. | Contents | Unit | Quantity | Marks |
| 1 | High speed mixer | set | 1 | |
| 2 | Screw feeding machine | set | 1 | |
| 3 | Twin screw extrusion system | set | 1 | |
| 3.1 | Feeding system | set | 1 | 0.75kw |
| 3.2 | SJ-51Twin screw extruder | set | 1 | 55kw, 40:1 |
| 3.3 | Vacuum venting system | set | 1 | 1.5kw |
| 3.4 | Water cycling system | set | 1 | 0.55kw |
| 3.5 | Automatic screen changer | set | 1 | 1.5kw |
| 4 | Electric cabinet | set | 1 | |
| 5 | Air-cooling auxiliary system | set | 1 | |
| 5.1 | Die head | set | 1 | |
| 5.2 | Face cutter | set | 1 | 1.5kw |
| 5.3 | One-stage conveying system | set | 1 | 4kw |
| 5.4 | Product silo | set | 1 | 4kw |
| 6 | Documents | set | 1 | |
World famous brand of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is Japanese joint venture ABB
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture
brand;
7). The electromagnetic valve adopt Denmark DANFOSS product.

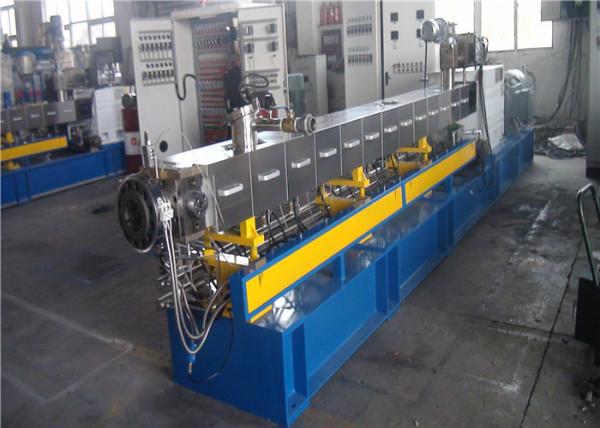

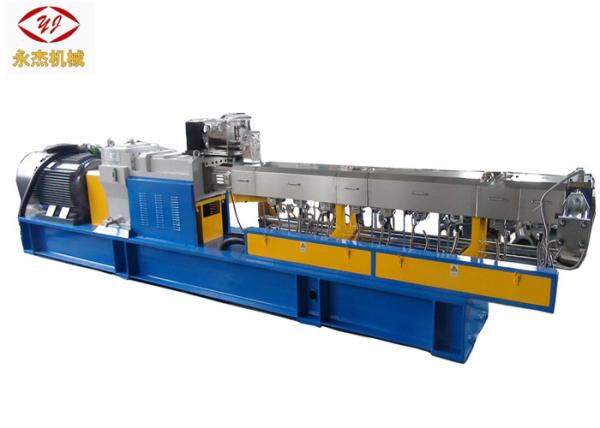

Photo of Wood Plastic Composite WPC Extruder Air Cooling Plastic
Pellet Machine
Main technical data of various model of twin screw extruder
pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of
“high level, accurate, highly sophisticated series product parallel
co-rotating “cordwood” twin screw extruder, single screw extruder,
two stage extruders and automatic plastic pelletizing machines. We
have provided customers first-class products with “strong torque,
high production, energy conservation and environmental protection
products. The special designed screw structure has realized
successfully for “one step shaping” on many kinds of products, and
is widely used in aluminum composite plate, XPS foaming plate, WP
plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
How to choose machine for plastic pellet?
1. Just tell us your rough formula, like 50% PE +50% wood fiber +
additives etc.
2. Your expected output per hour of the mahcine
Package of machine
1. Sea worthy of film or bubble film
2. Wooden box or frame according to customer's requirements
