2-15kg/h 20mm Mini Extruder Laboratory Plastic Pelletizing Machine Lab Twin Screw Extruder

Characteristics of twin screw extruder

The screw arrangement are adopted “toy bricks” principle, which assembly according to different machine L/D, different feeding way, different barrel and screw combination, different screen changing and cutting way, different electrical control mode, etc. it meets the features of material and technological process. Give consideration to the plastic universality commonality and appropriability.
Yongjie laboratory mini extruder SJSL20 is widely used among our customers of universities, research center, and factory R&D department for the testing of formula, compounding etc.

Quick details
Power:5.5kw
Screw diameter:21.7mm
Screw material:38CrMoAL
Barrel diameter:22mm
Barrel material:38CrMoAL
Output:around2-15kg/h
Cutting way: water strand, air cooling strand also available
Warranty:one year
Lead time:45 days after deposit
Heating power:16kw
Heating zones: 7zones
Barrel length:120*7=840mm
Control type:PID

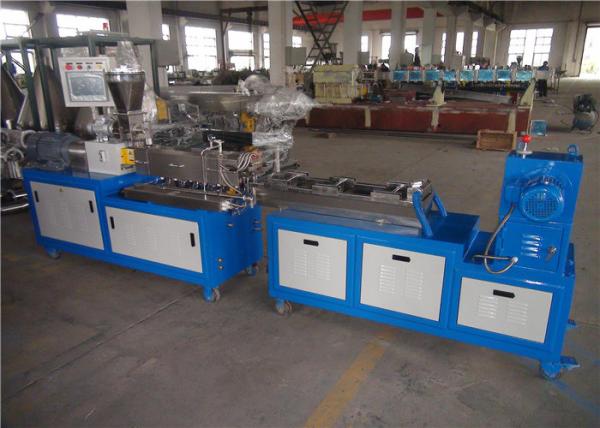

Photo of Laboratory Mini Extruder PVC Pelletizing Machine Pvc Cable Extruder

Main technical data of various model of twin screw extruder pelleitizing machine

How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine

Nanjing Yongjie Chemical &Machinery Equipment Co., LTD, founded in 2001, is specialized in R&D, production and service of plastic pelletizing machine. Our manufacturer covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. The factory certificated to CE, ISO9001:2008.

The company concentrates on research, development and production of “high level, accurate, sophisticated series of parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

“Yongjie machinery” with its outstanding product performance, stable quality, excellent integrated service, extensive experience in the industry, has exported extruders since 2005, and our machines have won good reputation among our clients in Southeast Asia, The Middle East, South America, North America, Europe and Africa etc.

“Everlasting Service, Palmary Quality.” is Yongjie people’s unremitting chasing aim.
