Two Stage ZL95-200 PVC Cable Pellet Machine Twin Screw Extruder
Machine
Quick details
Power:250kw for twin screw exturder, 90kw for single screw extruder
Screw diameter:71mm for twin screw extruder, 180mm for single screw
submachine
L/D:36:1 & 7:1
Output:1000-1500kg/h according to different material, formula and
technology of process etc.
Material of screw:38CrMoAL nitridged steel for anti corrosion
Material of Barrel:38CrMoAL nitridged steel for anti corrosion
Cutting way: air cooling die face for cable material
Warranty:one year
Lead time:45 days after deposit
Pre-sales service
♦1. Inquiry and consulting support.
♦2. Selecting economical and suitable extruder and related machines
for customers.
♦3. Providing technical details of machine.
♦4. Providing means of trial performance for customer.
♦5. Factory tour & assistance of invitation letter when needed.
Sales service
♦1. Recommending engineering conditions required for installation.
♦2. Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in
installation, commissioning and training.
♦2. Filing in detail customer’s order information.
♦3. Providing long-term maintenance service and spare parts.
♦4. Giving technical support to customer for developing new
product.
♦5. Providing free maintenance for a year.
Business Clause
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after
testing and qualifying machine at seller's manufacturer, L/C
payment are negotiable

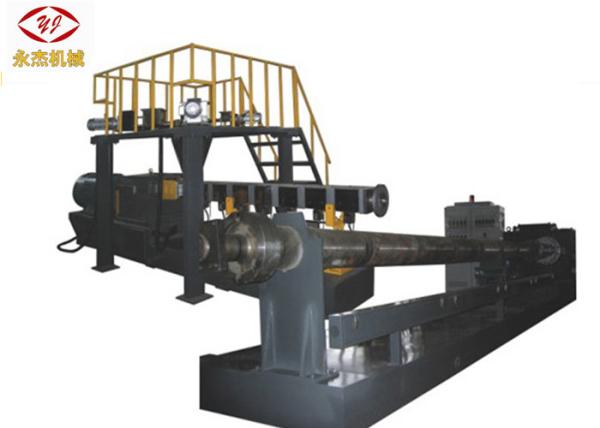

Photo of two stage cable material plastic pelletizing machine
Main technical data of various model of twin screw extruder
pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Typical production capacity (kg/h) |
| ZL51-100 | SJSL51 | 50.5 | 20-48 | 500-600 | 37/45 | 150-300 |
| YD100 | 100 | 7-15 | 65-85 | 37 |
| ZL60-120 | SJSL60 | 59.5 | 20-44 | 400 | 37/45 | 200-350 |
| YD120 | 120 | 7-15 | 65-90 | 37 |
| ZL65-150 | SJSL65 | 62.4 | 20-48 | 400-600 | 55/75 | 250-450 |
| YD150 | 150 | 7-15 | 65-85 | 37/45 |
| ZL75-180 | SJSL75 | 71 | 20-44 | 400-600 | 75/90 | 400-650 |
| YD180 | 180 | 7-15 | 65-90 | 45/55 |
| ZL95-200 | SJSL95 | 94 | 20-44 | 400-600 | 220/280 | 700-15000 |
| YD200 | 200 | 7-15 | 65-85 | 75/90 |
