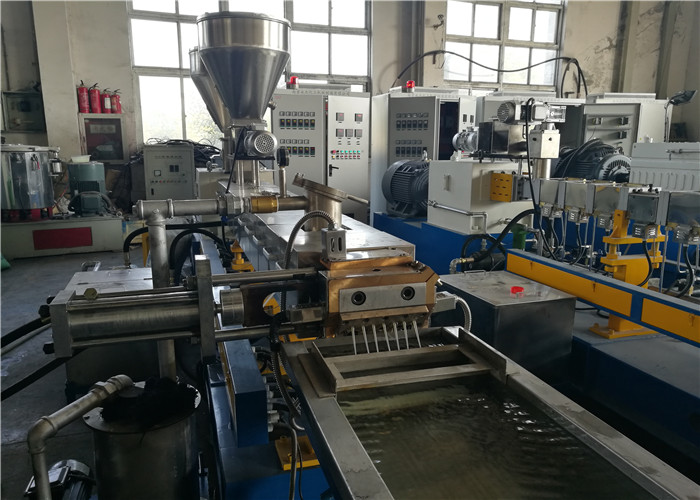

Nanjing Yongjie started to make water strand twin screw extruder
pelletizing machine since 2001,our twin screw extruders are widely
used for enforcing modification, degradab le master batch, anti-flame master
batch etc.
Water strand plastic pelletizing machine application
Reinforcement and modification: filling glass fiber or carbon fiber for :PP, PA, PBT, ABS, AS,
POM, PPS, PET etc.
Compounding and blending: PC+ABS, PA,+ABS, PP+EPDM, PA+EPDM, PP+SBS, etc.
Filling modification: filling Caco3, Talc, Titanium, carbon black for PVC, PE, PP,EVA
etc.
Cable material: LDE, HDPE, LLDPE, MDPE, drive pipe, insulation material,
crosslinking material, cable coating material, thermal contraction
material etc.
Special application material: PPR pipe compounds, PE crosslinking tube material, cigarettes
filter tip material, acetable fiber material etc.
Thick color masterbatch: PE, ABS, PS, EVA, PET, PP+ pigment + additives, etc.
Flaming retarding material: PVC, PP, PA, ABS, EVA, PBT + fire retardant, etc
Special functional masterbatch: double protection masterbatch, antistatic masterbatch,
anti-bacteria masterbatch, thermal insulation masterbatch,
hypothermia material etc
The biodegradable masterbatch: PP, PE, PS+ starch + additives etc.
Quick details
Screw diameter:64.2mm
Barrel diameter:63mm
Power:90kw
Barrel&screw material:W6Mo5Cr4V2 high speed tool steel
L/D:36:1
Length of barrel:240*10 section=2400mm
Special screw array with wear shear of flake material, super power
vacuum system to reduce IV loss maximumly.
Main parts and parameter of machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | | |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
