High Efficiency Polymer Extrusion Machine With Two Stage Conveying System

Ask Lasest Price
Brand Name :	Yongjie
Model Number :	SJSL75B
Certification :	CE
Price :	USD49000-110,000/set
Payment Terms :	L/C, T/T
Supply Ability :	200sets per year
Delivery Time :	35-50 days

Add to Cart

Product Details
Company Profile

High Efficiency Polymer Extrusion Machine With Two Stage Conveying System

500-600kg/h PE PP Filler Master Batch Twin Screw Polymer Extrusion Machine

Characteristics of twin screw extruder
The screw arrangement are adopted “toy bricks” principle, which assembly according to different machine L/D, different feeding way, different barrel and screw combination, different screen changing and cutting way, different electrical control mode, etc. it meets the features of material and technological process. Give consideration to the plastic universality commonality and appropriability.

Quick details of machine
Power:110kw/132kw/160kw
Screw material:W6Mo5Cr4V2
Barrel material: 45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside that smooth
and abrasion resistant. The hardness is HRC60-64.
L/D:48/52:1
Output:500-600kg/h according to different material, formula and technology of process etc.
Revolutions: 0-600rpm；
Reduction ratio: i = 2.5:1

Scope of supply

No.	Contents	Unit	Quantity	Marks
1	Twin screw extrusion system	set	1
1.1	Feeding system	set	1	1.5kw
1.2	SJ-75B Twin screw extruder	set	1	160kw, 40:1
1.3	Water cycling system	set	1	0.55kw
2	Electric cabinet	set	1
3	Air-cooling auxiliary system	set	1
3.1	Die head	set	1
3.2	Face cutter	set	1	1.5kw
3.3	Two-stage conveying system	set	1	4kw/set, 8kw totally
3.4	Product silo	set	1	4kw
4	Documents	set	1

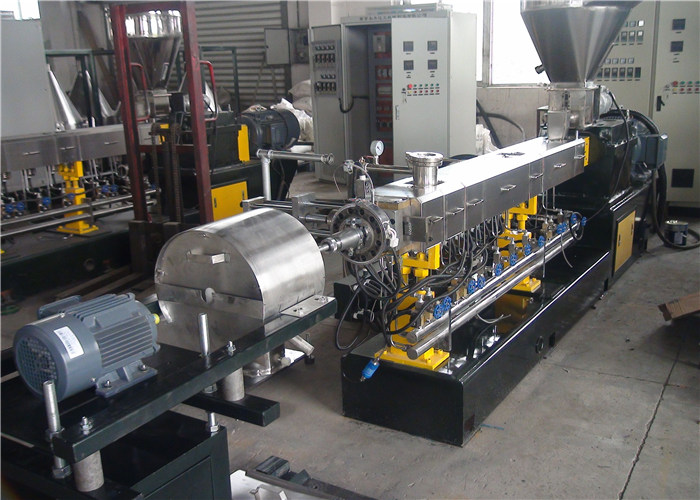

Photo of machine

Main models of tiwn screw extruder

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL20	A/B	22	21.7	32-44	500/600	4/5.5kw	30/30
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
