Air Cooling Die Face Cutting Polythene Extrusion Machines One Year Warranty

Ask Lasest Price
Brand Name :	Yongjie
Model Number :	SJSL51
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	200sets per year
Delivery Time :	35-50 days

Add to Cart

Product Details
Company Profile

Air Cooling Die Face Cutting Polythene Extrusion Machines One Year Warranty

51mm Filler Masterbatch Polymer Extrusion Machine Air Cooling Plastic Pellet Maker

Quick details

Power:45/55kw option according to required output

Screw diameter:50.5mm

Screw material: W6Mo5Cr4V2 (6542＃) high speed tool steel

Barrel diameter: 51mm

Barrel material:45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside

L/D:44/48:1

Output:100-150kg/h according to different material, formula and technology of process etc.

Cutting way: air cooling die face for pe pp filler masterbatch etc.

Warranty:one year

Lead time:45 days after deposit

Scope of Supply

No.	Contents	Unit	Quantity	Marks
1	High speed mixer	set	1
2	Screw feeding machine	set	1
3	Twin screw extrusion system	set	1
3.1	Feeding system	set	1	0.75kw
3.2	SJ-51Twin screw extruder	set	1	37kw, 36:1
3.3	Vacuum venting system	set	1	1.5kw
3.4	Water cycling system	set	1	0.55kw
3.5	Automatic screen changer	set	1	1.5kw
4	Electric cabinet	set	1
5	Air-cooling auxiliary system	set	1
5.1	Die head	set	1
5.2	Face cutter	set	1	1.5kw
5.3	One-stage conveying system	set	1	4kw
5.4	Product silo	set	1	4kw
6	Documents	set	1

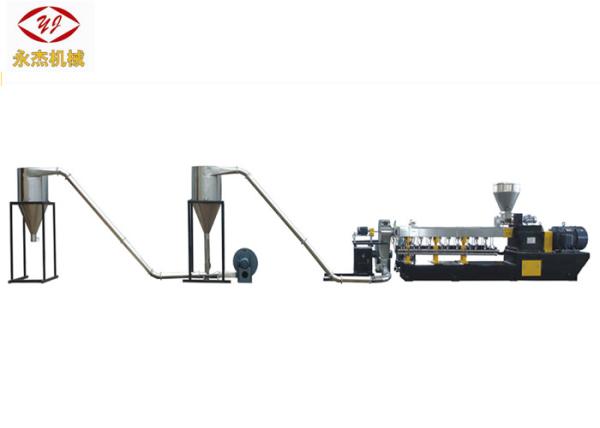

Photo of Filler Masterbatch Manufacturing Machine Air Cooling Plastic Pellet Machine

Main technical data of various model of twin screw extruder pelleitizing machine

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Company Brief

Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
