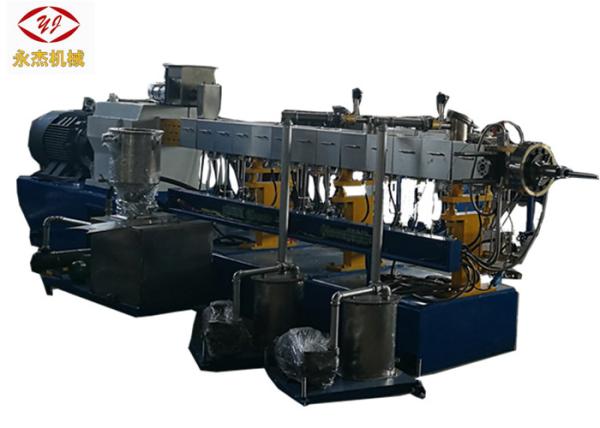

75m PP Twin Screw Extruder Plastic Pelletizing Machine Filler
Masterbatch Machine
Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
Quick details
Power:90kw option according to required output
Screw diameter:71mm
Screw material: W6Mo5Cr4V2 (6542＃) high speed tool steel
Barrel diameter: 71.8mm
Barrel material:45＃forged steel with the abrasion-resistant alloy 101 (Ni-Fe-Cr-W) inside
L/D:48:1
Output:500-800kg/h according to different material, formula and technology of
process etc.
Cutting way: air cooling die face for pe pp filler masterbatch etc.
Warranty:one year
Lead time:45 days after deposit
| No. | Contents | Unit | Quantity | Marks |
| 1 | High speed mixer | set | 1 | 500L |
| 2 | Screw feeder machine | set | 1 | 1.5kw |
| 3 | Twin screw extrusion system | set | 1 | |
| 3.1 | Feeding system | set | 1 | 1.5kw |
| 3.2 | SJ-65 Twin screw extruder | set | 1 | 160kw, 48:1 |
| 3.3 | Vacuum venting system | set | 1 | 2.2kw |
| 3.4 | Water cycling system | set | 1 | 0.55kw |
| 3.5 | Automatic screen changer | set | 1 | 1.5kw |
| 4 | Electric cabinet | set | 1 | |
| 5 | Air-cooling auxiliary system | set | 1 | |
| 5.1 | Die head | set | 1 | |
| 5.2 | Face cutter | set | 1 | 1.5kw |
| 5.3 | One-stage conveying system | set | 1 | 4kw |
| 5.4 | Product silo | set | 1 | 4kw |
| 6 | Documents | set | 1 | |
Main technical data of various model of twin screw extruder
pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.The company concentrates on
research, development and production of “high level, accurate,
highly sophisticated series product parallel co-rotating “cordwood”
twin screw extruder, single screw extruder, two stage extruders and
automatic plastic pelletizing machines. We have provided customers
first-class products with “strong torque, high production, energy
conservation and environmental protection products. The special
designed screw structure has realized successfully for “one step
shaping” on many kinds of products, and is widely used in aluminum
composite plate, XPS foaming plate, WP plate, PP, PE sheet
industry, etc.
QAULITY IS PUT AT THE FIRST , and our factory is certificated to ISO 9001:2008 and CE.
