Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and
carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material,
crosslinking material, cable coating material, thermal contraction
pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU
thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.

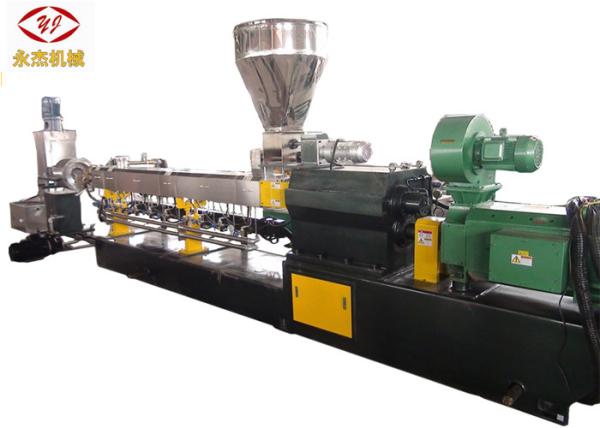

Quick details of sjsl36 water ring pelletizer
Screw diameter:50.5mm
Screw material:W6Mo5Cr4V2
Barrel diameter:51mm
Barrel material:W6Mo5Cr4V2
Motor power:45kw
Motor brand:SIEMENS
L/D:44:1 or 48:1 etc
Output:100-250kg/h
Work condition (provided by customer)
| Warehouse/Workshop | Dimension (M*M*M): 15 (Length)×3 (width) ×2.5 (Height) Crane: Machine positioning |
| Temperature | ≤40℃ |
| Power supply & Installation power | 3-phase, 380V, 50Hz |
| Wire/cables | Wires/cables from power supply to control cabinet of this
production line; All electrical cables from control cabinet to each machine. |
| Cooling Water hose/pipe | Water supply to machines and pools. Creating a pool (4-6m3) outside
the workshop, using water pump to make recycling water. |
| Weight | Extruder: ~2.5T, sub-machine: ~1T |
Main parts and technical parameters
| No. | Contents | Unit | Quantity | Marks |
| 1 | 100L high speed mixer | set | 1 | |
| 2 | Twin screw extrusion system | set | 1 | |
| 2.1 | Feeding system | set | 1 | 0.75kw |
| 2.2 | SJ-51 Twin screw extruder | set | 1 | 45kw, 44:1 |
| 2.3 | Vacuum venting system | set | 1 | 1.5kw |
| 2.4 | Water cycling system | set | 1 | 0.55kw |
| 2.5 | Automatic screen changer | set | 1 | 1.5kw |
| 3 | Electric cabinet | set | 1 | |

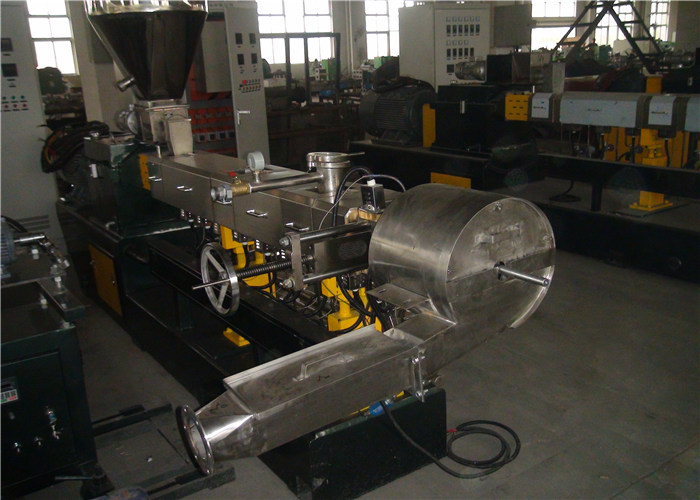

| 4 | Water-ring auxiliary system | set | 1 | |
| 4.1 | Water-ring die head | set | 1 | |
| 4.2 | Face cutter with guide rail & cover | set | 1 | 1.5KW |
| 4.3 | Centrifugal dehydrator | set | 1 | 4KW |
| 4.4 | Vibrating sieve | set | 1 | 0.4KW |
| 4.5 | Storage bin | set | 1 | |
| 5 | Documents | set | 1 | |
Main Technical Details of Various Water Ring Pelletizer Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
