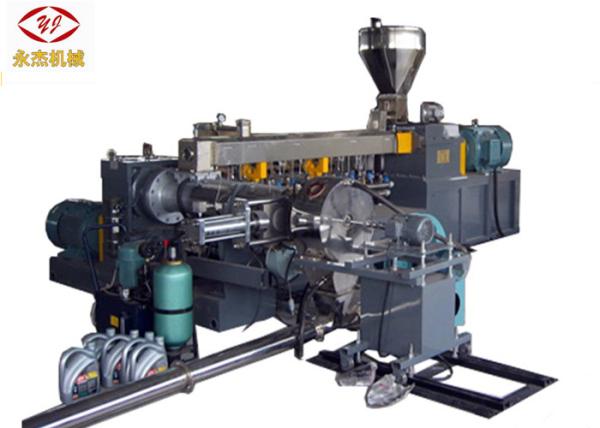

Two Stage ZL75-180 PVC Cable Material Plastic Pelletizing Machine
Quick details
Power:110kw for twin screw exturder, 55kw for single screw extruder
Screw diameter:71mm for twin screw extruder, 180mm for single screw
submachine
L/D:36:1 & 7:1
Output:500-700kg/h according to different material, formula and technology of
process etc.
Cutting way: air cooling die face for cable material
Warranty:one year
Lead time:45 days after deposit
World famous brands of electronic components
1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
2). The inverter of extruder is ABB;
3). The low-voltage apparatus and the button adopt SCHNEIDER product;
4). AC contactor adopt SIEMENS product;
5). The main motor is SISMENS BEIDE;
6). The air switch adopts CHINT products. The solid-state relays are from American joint venture
brand;
7). The electromagnetic valve: adopt Denmark DANFOSS product.
Business Clause
Lead time:45 days after deposit
Engineers available for overseas installation, commissioning etc
Payment term:30% deposit via TT, 70% balance before shipment after
testing and qualifying machine at seller's manufacturer, L/C
payment are negotiable

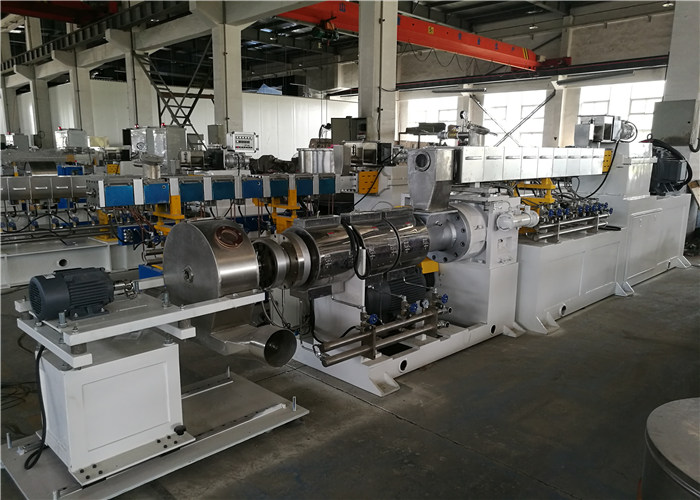

Photo of two stage cable material plastic pelletizing machine
Main technical data of various model of twin screw extruder
pelleitizing machine
| Model type | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Typical production capacity (kg/h) |
| ZL51-100 | SJSL51 | 50.5 | 20-48 | 500-600 | 37/45 | 150-300 |
| YD100 | 100 | 7-15 | 65-85 | 37 |
| ZL60-120 | SJSL60 | 59.5 | 20-44 | 400 | 37/45 | 200-350 |
| YD120 | 120 | 7-15 | 65-90 | 37 |
| ZL65-150 | SJSL65 | 62.4 | 20-48 | 400-600 | 55/75 | 250-450 |
| YD150 | 150 | 7-15 | 65-85 | 37/45 |
| ZL75-180 | SJSL75 | 71 | 20-44 | 400-600 | 75/90 | 400-650 |
| YD180 | 180 | 7-15 | 65-90 | 45/55 |
| ZL95-200 | SJSL95 | 94 | 20-44 | 400-600 | 220/280 | 700-15000 |
| YD200 | 200 | 7-15 | 65-85 | 75/90 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.
The company concentrates on research, development and production of
“high level, accurate, highly sophisticated series product parallel
co-rotating “cordwood” twin screw extruder, single screw extruder,
two stage extruders and automatic plastic pelletizing machines. We
have provided customers first-class products with “strong torque,
high production, energy conservation and environmental protection
products. The special designed screw structure has realized
successfully for “one step shaping” on many kinds of products, and
is widely used in aluminum composite plate, XPS foaming plate, WP
plate, PP, PE sheet industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
