    Professional PVC Pelletizing Machine 62.4mm / 150mm Screw Diameter Power Saving

    Ask Lasest Price
    Brand Name : Yongjie
    Model Number : ZL65-150
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200sets per year
    Delivery Time : 35-50 days
    • Product Details
    • Company Profile

    Professional PVC Pelletizing Machine 62.4mm / 150mm Screw Diameter Power Saving

    ZL65-150 PVC Shoe Sole Cable Hose Two Stage Extruder PVC Pelletizing Machine

    Two Stage Extruder
    ZL series, that’s two stage compounding extruder consisted of two parts. Mainly there are three types of two stage extruder combination:
    1.Single screw main extruder machine-single screw submachine
    2.Single screw main pelletizing machine-twin screw submachine
    3.Twin screw main pelletizing machine-single screw submachine
    The first two types are widely used for recycled plastic granulating.

    And the third type for heat-sensitive material like PVC, POM, XLPE etc.
    The twin screw extruder (SJSL-) at the first stage is to realize good shearing and compounding for material, and then the extrusion and pelletizing by YD single screw extruder (second stage). The new, scientific and advanced design and structure can avoid material decomposition caused by material overheating
    Application of Twin-Single Screw Extruder
    Carbon black master batch
    PVC cable, PVC transparent bottle and blood transfusion tube materials
    PE silicon hydride crosslink cable material, peroxide crosslink cable material
    Wood- plastic blending material
    Heat-sensitive polymeride.

    Quick details
    Power:75kw for twin screw exturder, 45kw for single screw extruder
    Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine
    L/D:36:1 & 7:1
    Output:400-600kg/h according to different material, formula and technology of process etc.
    Cutting way: air cooling die face for cable material
    Warranty:one year
    Lead time:45 days after deposit

    World famous brands of electronic components
    1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;
    2). The inverter of extruder is ABB;
    3). The low-voltage apparatus and the button adopt SCHNEIDER product;
    4). AC contactor adopt SIEMENS product;
    5). The main motor is SISMENS BEIDE;
    6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;
    7). The electromagnetic valve: adopt Denmark DANFOSS product.

    Business Clause
    Lead time:45 days after deposit
    Engineers available for overseas installation, commissioning etc
    Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

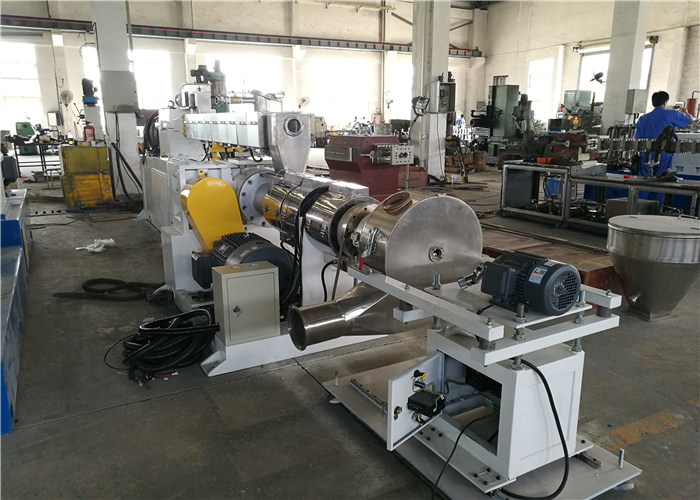

    Photo of two stage cable material PVC pelletizing machine




    Main technical data of various model of twin screw extruder pelleitizing machine

    Model typeScrew Diameter (mm)Screw L/Dscrew speed n(r/min)Main motor power(Kw)Typical production capacity (kg/h)
    ZL51-100SJSL5150.520-48500-60037/45150-300
    YD1001007-1565-8537
    ZL60-120SJSL6059.520-4440037/45200-350
    YD1201207-1565-9037
    ZL65-150SJSL6562.420-48400-60055/75250-450
    YD1501507-1565-8537/45
    ZL75-180SJSL757120-44400-60075/90400-650
    YD1801807-1565-9045/55
    ZL95-200SJSL959420-44400-600220/280700-15000
    YD2002007-1565-8575/90


    Company Brief
    Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.


    How to choose machine for plastic pellet?
    1. Just tell us your rough formula?
    2. Your expected output per hour of the mahcine
