Nanjing SJSL65B Die Face PVC Pelletizing Machine PVC ABS Twin Screw
Machine
Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio2, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)2, AI2(OH)3 etc.
Quick details
Power:90kw
Screw diameter:62.4mm
Barrel diameter:63mm
Screw & barrel material:38CrMoAl
Output:300-450kg/h
Cutting way: air cooling die face for pvc pellets
Warranty:one year
Lead time:45 days after deposit
Heating zones: 9 zones
Inverter brand:ABB
Gear box: high torque, input 1480rpm, output 600rpm, reduction
ratio:2.5:1
Barrel length:240*9=2160mm
Scope of supply
| No. | Contents | Unit | Quantity | Marks |
| 3 | Twin screw extrusion system | set | 1 | |
| 3.1 | Feeding system | set | 1 | 1.5kw |
| 3.2 | SJ-65 Twin screw extruder | set | 1 | 90kw, 36:1 |
| 3.3 | Vacuum venting system | set | 1 | 2.2kw |
| 3.4 | Water cycling system | set | 1 | 0.55kw |
| 3.5 | Automatic screen changer | set | 1 | 1.5kw |
| 4 | Electric cabinet | set | 1 | PID |
| 5 | Air-cooling auxiliary system | set | 1 | |
| 5.1 | Die head | set | 1 | |
| 5.2 | Face cutter | set | 1 | 1.5kw |
| 5.3 | one-stage conveying system | set | 1 | 4kw |
| 5.4 | Vibrating sieve | set | 1 | 0.37kw |
| 5.5 | Product silo | set | 1 | |
| 6 | Documents | set | 1 | |
Free spare parts:
| No. | Contents | Unit | Quantity | Marks |
| 1 | Screw elements | set | ~300mm | |
| 2 | Output and input shaft oil seals | piece | 3 | |
| 3 | Venting room seal ring | piece | 1 | |
| 4 | Asbestos gloves | pairs | 2 | |
| 5 | Allen key (inner) | set | 1 | 5 pieces |
| 6 | Allen key (outer) | set | 1 | 3 pieces |
| 7 | Cross, Flat screw driver | piece | 1 each | 2 pieces |
| 8 | Screw hoisting ring | piece | 2 | |
| 9 | Blade | piece | 30 | |
Attached files
| 1. | Main Machine Plan |
| 2. | Description for operating and installing machine |
| 3. | Specification of electric control system |
| 4. | Structure of screw |
| 5. | Direction of main machine |
| 6. | Shipping list |

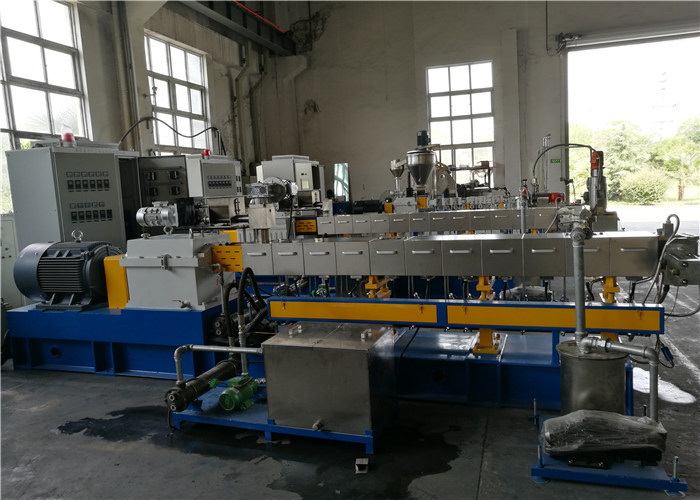

Photo of Nanjing SJSL65B Die Face PVC Pelletizing Machine PVC ABS Twin Screw
Machine
Main technical data of various model of twin screw extruder
pelleitizing machine
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | | |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own
land, with monthly output of machine 20sets. Our factory is
certificated to CE, ISO9001:2008.The company concentrates on
research, development and production of “high level, accurate,
highly sophisticated series product parallel co-rotating “cordwood”
twin screw extruder, single screw extruder, two stage extruders and
automatic plastic pelletizing machines. We have provided customers
first-class products with “strong torque, high production, energy
conservation and environmental protection products. The special
designed screw structure has realized successfully for “one step
shaping” on many kinds of products, and is widely used in aluminum
composite plate, XPS foaming plate, WP plate, PP, PE sheet
industry, etc.
How to choose machine for plastic pellet?
1. Just tell us your rough formula?
2. Your expected output per hour of the mahcine
