71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones

Ask Lasest Price
Brand Name :	Yongjie
Model Number :	SJSL75D
Certification :	CE
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	200sets per year
Delivery Time :	35-50 days

Add to Cart

Product Details
Company Profile

71mm Screw Diameter Die Face Pelletizer PVC Granulating Machine 9 Heating Zones

SJSL75D Die Face Pelletizier Twin Screw Extruder PVC Pelletizing Machine

Air Cooling Die Face PVC Pelletizing Machine Application
Enforcing modification: PE, EVA etc+Caco3, Talc, Tio₂, PVC, PP, Carbon black
Degradable master batch: PE, PS etc. + starch, additive etc
Anti-flake master batch: PE, EVA etc+Sb2o3, Mg(OH)₂, AI₂(OH)₃ etc.
Quick details
Power:280kw
Screw diameter:71mm
Barrel diameter:71.8mm
Gearbox:800 rpm, reduction ratio:1.9:1
Screw & barrel material:38CrMoAl
Output:500-1000kg/h
Cutting way: air cooling die face for pvc pellets
Warranty:one year
Lead time:45 days after deposit
Heating zones: 9 zones
Inverter brand:ABB
Gear box: high torque, input 1480rpm, output 600rpm, reduction ratio:2.5:1
Barrel length:290*9=2610mm

Free spare parts:

No.	Contents	Unit	Quantity	Marks
1	Screw elements	set	~300mm
2	Output and input shaft oil seals	piece	3
3	Venting room seal ring	piece	1
4	Asbestos gloves	pairs	2
5	Allen key (inner)	set	1	5 pieces
6	Allen key (outer)	set	1	3 pieces
7	Cross, Flat screw driver	piece	1 each	2 pieces
8	Screw hoisting ring	piece	2
9	Blade	piece	30

Pre-sales service
♦1. Inquiry and consulting support.♦2.Selecting economical and suitable extruder and related machines for customers.
♦3.Providing technical details of machine.
♦4.Providing means of trial performance for customer.
♦5.Factory tour & assistance of invitation letter when needed.
Sales service
♦1.Recommending engineering conditions required for installation.
♦2.Communicating on time the manufacturing status of machines.
After-sales service
♦1. Engineers available to service machinery overseas in installation, commissioning and training.
♦2.Filing in detail customer’s order information.
♦3.Providing long-term maintenance service and spare parts.
♦4.Giving technical support to customer for developing new product.
♦5.Providing free maintenance for a year

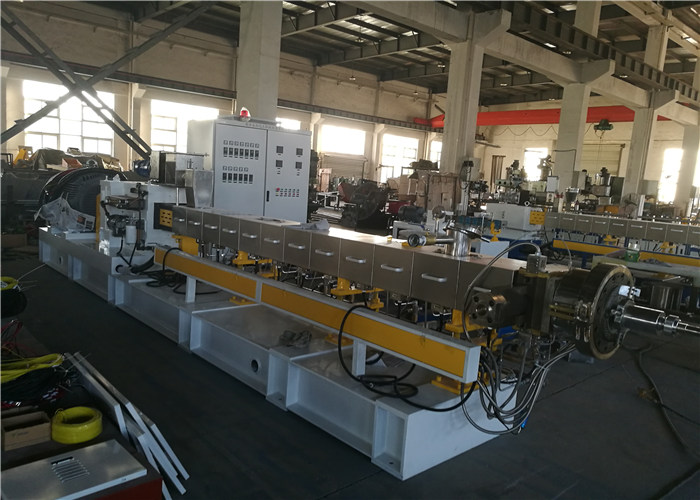

Photo of Nanjing SJSL75D

Main technical data of various model of twin screw extruder pelleitizing machine

Model type	Series	Barrel Diameter (mm)	Screw Diameter (mm)	Screw L/D	screw speed n(r/min)	Main motor power(Kw)	Screw torque T(N.m)	Torque rating (T/A³)	Typical production capacity (kg/h)
SJSL20	A/B	22	21.7	32-44	500/600	4/5.5kw	30/30
SJSL-36	A/B/C/D	36	35.6	32-48	400/600	11/15/18.5/22	125-225	4.6-8.3	30-120
SJSL-51	A/B/C/D	51	50.5	32-52	500/600	45/55/75/90	405-680	5.1-8.5	120-400
SJSL-65	A/B/C/D	63	62.4	32-64	500/600	75/90/110/132	680-1200	4.8-8.5	180-750
SJSL-75	A/B/C/D	72	71	32-64	500/600	110/132/160/250	995-1890	4.6-8.7	300-1200
SJSL-95	A/B/C/D	94	93	32-64	500/600	250/315/450/550	2260-4510	4.7-8.7	700-2500
SJSL-135	A/B/C/D	135	133	32-48	400/500	550/750/900/1200	6200-10800	4.4-7.7	1550-6500

Company Brief
Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
