90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making

    Buy cheap 90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making from wholesalers

    Buy cheap 90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making from wholesalers
    • Buy cheap 90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making from wholesalers
    • Buy cheap 90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making from wholesalers
    • Buy cheap 90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making from wholesalers
    • Buy cheap 90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making from wholesalers

    90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making

    Ask Lasest Price
    Brand Name : Yongjie
    Model Number : SJSL65
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 200sets per year
    Delivery Time : 35-50 days
    • Product Details
    • Company Profile

    90kw Twin Screw Extruder Machine For Potato Starch Biodegradable PLA Pellets Making

    Potato Cassava Starch Biodegradable PLA Pellets Twin Screw Extruder Machine


    Quick details

    Power:90kw

    Screw diameter:62.4mm

    Barrel diameter: 63mm

    L/D:48:1

    Air conveyor strand length:18 meter, stainless steel material

    Output:250-350kg/h according to different material, formula and technology of process etc.

    Cutting way: air cooling belt for biodegradable corn startch, PLA, also underwater and water strand for PLA according to different recipe of PLA.

    Warranty:one year

    Lead time:45 days after deposit


    Scope of supply

    No.ContentsUnitQuantityMarks
    1High speed mixerset1500L
    2Spiral loading machineset1
    3Twin screw extrusion systemset1
    3.1Feeding systemset11.5kw
    3.2SJ-65Twin screw extruderset190kw, 44:1
    3.3Vacuum venting systemset12.2kw
    3.4Water cycling systemset10.55kw
    4Electric cabinetset1
    5Air cooling strand auxiliary systemset1
    5.1Die headset1
    5.2Air cooling bandset118 meters
    6Documentsset1

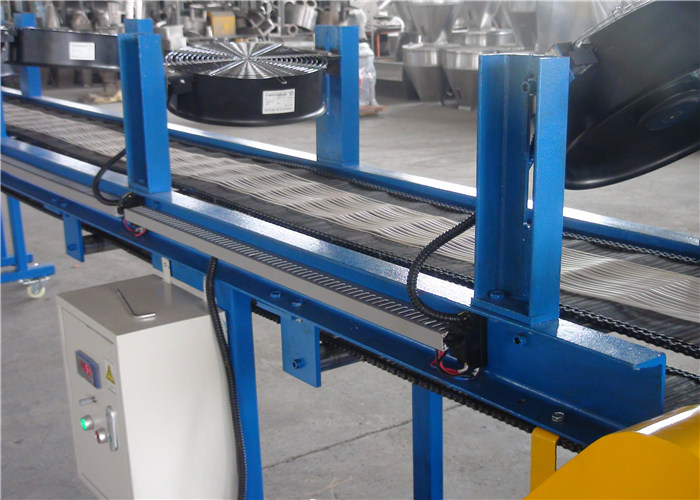

    Photo of startch biodegradable pellet twin screw extruder



    Main technical data of various model of twin screw extruder pelleitizing machine

    Model typeSeriesBarrel Diameter (mm)Screw Diameter (mm)Screw L/Dscrew speed n(r/min)Main motor power(Kw)Screw torque T(N.m)Torque rating (T/A3)Typical production capacity (kg/h)
    SJSL-36A/B/C/D3635.632-48400/60011/15/18.5/22125-2254.6-8.330-120
    SJSL-51A/B/C/D5150.532-52500/60045/55/75/90405-6805.1-8.5120-400
    SJSL-65A/B/C/D6362.432-64500/60075/90/110/132680-12004.8-8.5180-750
    SJSL-75A/B/C/D727132-64500/600110/132/160/250995-18904.6-8.7300-1200
    SJSL-95A/B/C/D949332-64500/600250/315/450/5502260-45104.7-8.7700-2500
    SJSL-135A/B/C/D13513332-48400/500550/750/900/12006200-108004.4-7.71550-6500

    Company Brief

    Nanjing Yongjie Qixin Machinery Equipment Co.,Ltd Founded in 2001, covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. Our factory is certificated to CE, ISO9001:2008.The company concentrates on research, development and production of “high level, accurate, highly sophisticated series product parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.
