ZL75-180 Two Stage PVC XLPE POM Twin Screw Extruder Machine/YJ Annie

Quick details

Power:132kw for twin screw exturder, 55kw for single screw extruder

Screw diameter:71mm for twin screw extruder, 180mm for single screw submachine

L/D:36:1 & 7:1

Output:500-700kg/h according to different material, formula and technology of process etc.

Cutting way: air cooling die face for cable material

Warranty:one year

Lead time:45 days after deposit

Twin screw extruder details:

Motor : AC motor, power: 110KW, brand: SIEMENS BEIDE;

Speed governing: Inverter control speed;

Revolutions: 0-500rpm;

Reduction :

Reduction ratio: i = 3:1;

Transmission gear: Parallel tri-axial structure is combination of

reduction and matrix.

The gear is made of high quality alloy (20CrNi2Mo). It had been treated

by cementation heat process, the precision grade can reach 6th. It

guarantee the tooth surface is high speed, overloading, low noise and high

torque.

Drive bearing: The brand of axletree: Japanese NSK.

Lubrication: Gear bearings in the gear box will be of oil immersed. There

is hydraulic lubrication in the gear engagement and gear bearings.

Cooling: Lubricated cooling adopts shell and tube cooler and circulated

water cooling method.

Single screw extruder submachine details

L/D: 7:1

Screw: It’s made of 38CrMoAlA , which has been treated by the

azotizing on the surface, HV=950~1100.

Screw cylinder: It’s made of 38CrMoAlA , which has been treated

by the azotizing on the surface, HV=950~1100.

Central height: 800mm.

The motor power: AC 55KW

Speed: 17-84rpm.

Barrels are cast copper heater, die head are cast aluminum heater,

Heating power: 26KW.

The cooling of barrels: two sets of 0.37KW fan.

World famous brands of electronic components

1). Temperature control meter is Japanese RKC meter, intelligent type, double channel;

2). The inverter of extruder is ABB;

3). The low-voltage apparatus and the button adopt SCHNEIDER product;

4). AC contactor adopt SIEMENS product;

5). The main motor is SISMENS BEIDE;

6). The air switch adopts CHINT products. The solid-state relays are from American joint venture brand;

7). The electromagnetic valve: adopt Denmark DANFOSS product.

Business Clause

Lead time:45 days after deposit

Engineers available for overseas installation, commissioning etc

Payment term:30% deposit via TT, 70% balance before shipment after testing and qualifying machine at seller's manufacturer, L/C payment are negotiable

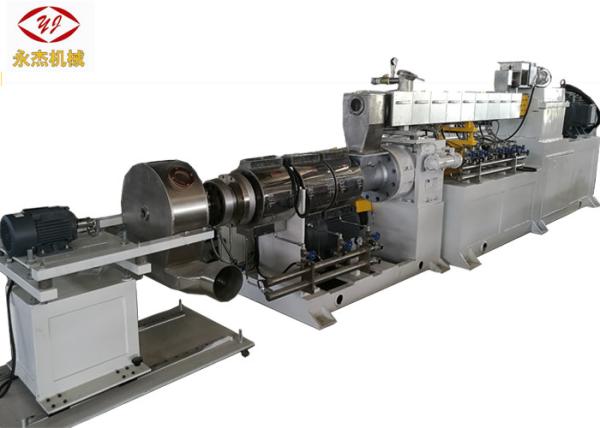

Photo of two stage twin screw extruder machine

Main technical data of various model of twin screw extruder pelleitizing machine

How to choose machine for plastic pellet?

1. Just tell us your rough formula?

2. Your expected output per hour of the mahcine

Nanjing Yongjie Chemical &Machinery Equipment Co., LTD, founded in 2001, is specialized in R&D, production and service of plastic pelletizing machine. Our manufacturer covers an area of 20,000 square meters on our own land, with monthly output of machine 20sets. The factory certificated to CE, ISO9001:2008.

The company concentrates on research, development and production of “high level, accurate, sophisticated series of parallel co-rotating “cordwood” twin screw extruder, single screw extruder, two stage extruders and automatic plastic pelletizing machines. We have provided customers first-class products with “strong torque, high production, energy conservation and environmental protection products. The special designed screw structure has realized successfully for “one step shaping” on many kinds of products, and is widely used in aluminum composite plate, XPS foaming plate, WP plate, PP, PE sheet industry, etc.

“Yongjie machinery” with its outstanding product performance, stable quality, excellent integrated service, extensive experience in the industry, has exported extruders since 2005, and our machines have won good reputation among our clients in Southeast Asia, The Middle East, South America, North America, Europe and Africa etc.

“Everlasting Service, Palmary Quality.” is Yongjie people’s unremitting chasing aim.
